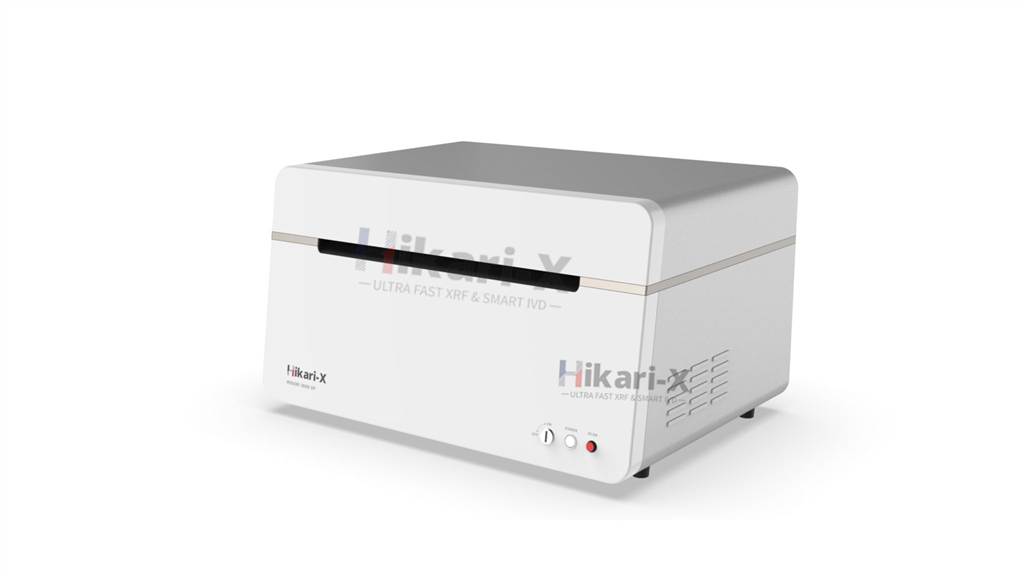

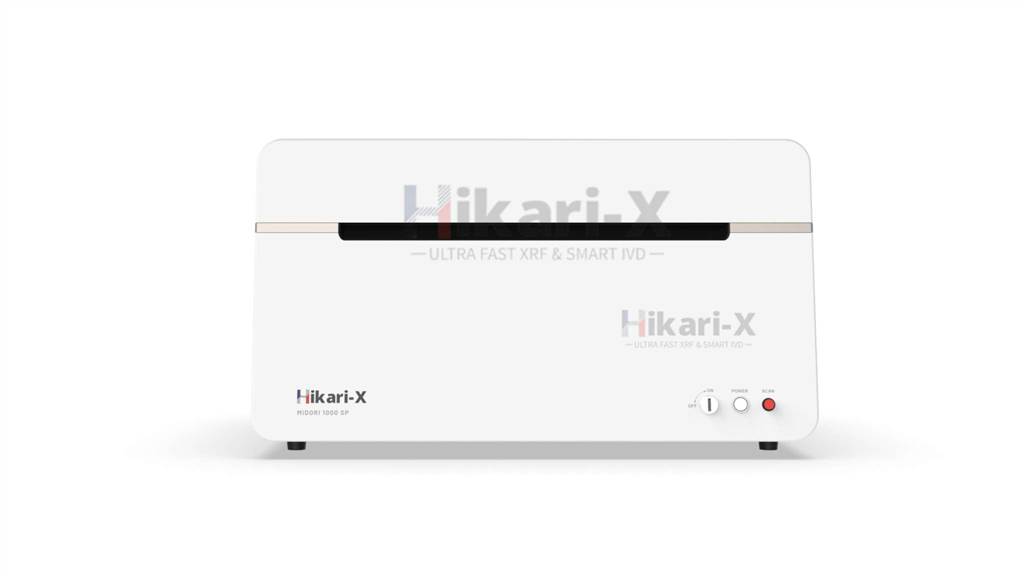

The Midori 1000SP is new and modern X-ray Fluorescence Spectrometer for RoHS/WEE/ELV hazardous elements screening, metals precious metals analysis and coating thickness measurement.
The Midori 1000SP is designed as the most flexible configurations from the basic to the advanced functions, it helps our customer to select the best configuration with the lowest price to meet their own requirement. The single testing or Multiple point testing is also selected by the customers, especially Midori 1000SP can integrated any collimators ( and any filters (6-8 positions for filters and collimator from 0.2mm to 10mm or even up to 12mm).
The midori 1000SP is the Excellent tool to test phosphorus P, S and Cl in ABS, PP, HDPE, LDPE, etc,..
Feature and Specifications:
- RoHS element range: P, S, Cl, Cr, Br, Hg, Pb, Cd, As, Sb, Se, Sn, Ba (can be added any elements such as Cu, Ni, Ag,….)
- Analyzed Element range at a time: Up to 55 elements
- High resolution Detector SDD min.127eV
- High Speed Digital Signal Pulse Processor NozokariTM DPP
- High Power X-ray tube, W target: max 50KV (65KV as an option)
- X-ray tube current: 1mA (2mA ++ as an option)
